Map

The /map page plots your contacts on an interactive world map. Use it to find nearby contacts when you travel, to see where your network clusters, and to jump from a contact's location to the map.

How it works

Every contact with a non-empty location string is geocoded to latitude and longitude through the Mapbox Geocoding API. The map queries contacts inside the current viewport and draws them as pins, clustering them in dense areas.

Opening the map

There are two entry points:

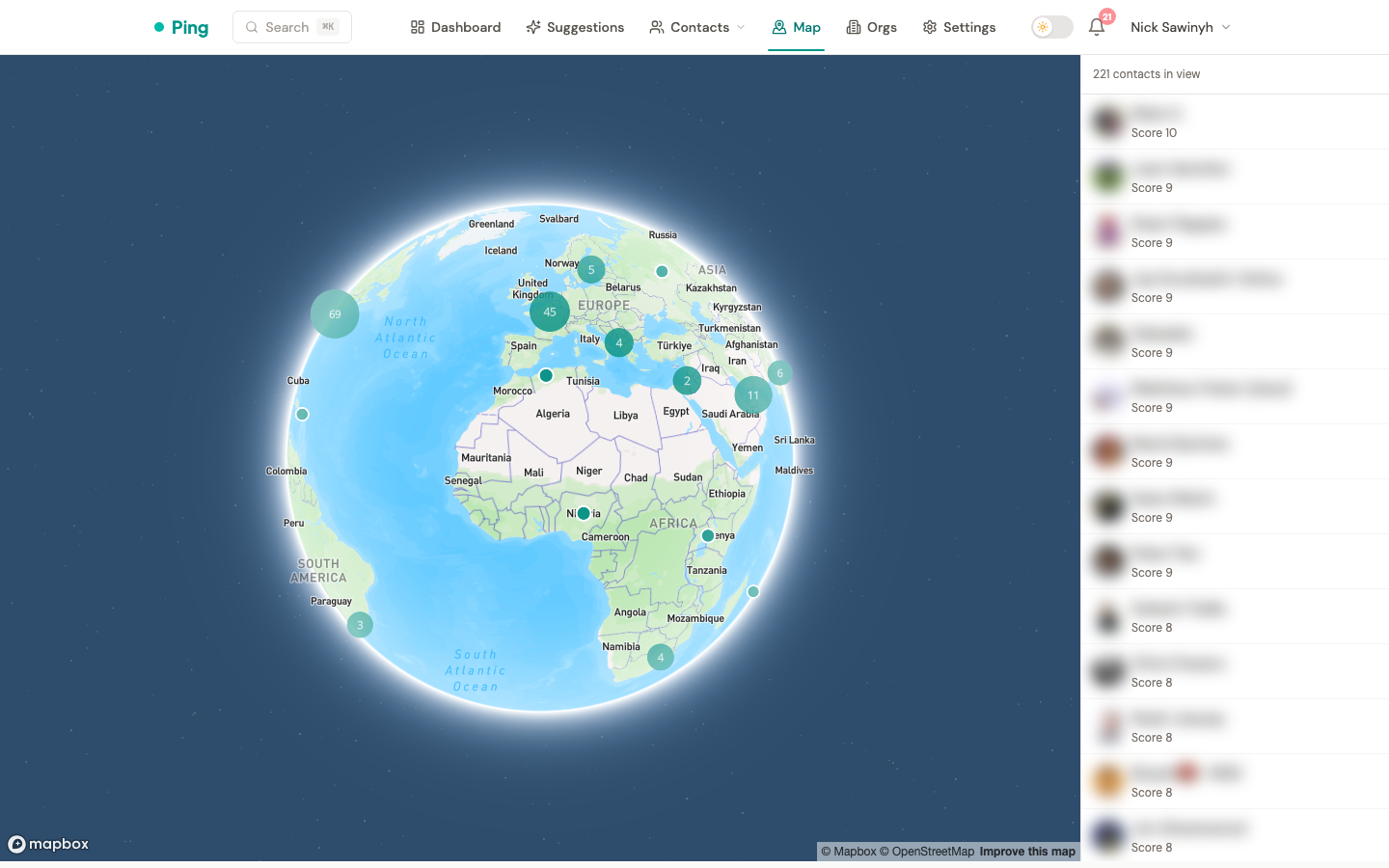

1. Sidebar nav: the "Map" entry opens /map at a world view. Pan and zoom to fill the sidebar with the contacts in view.

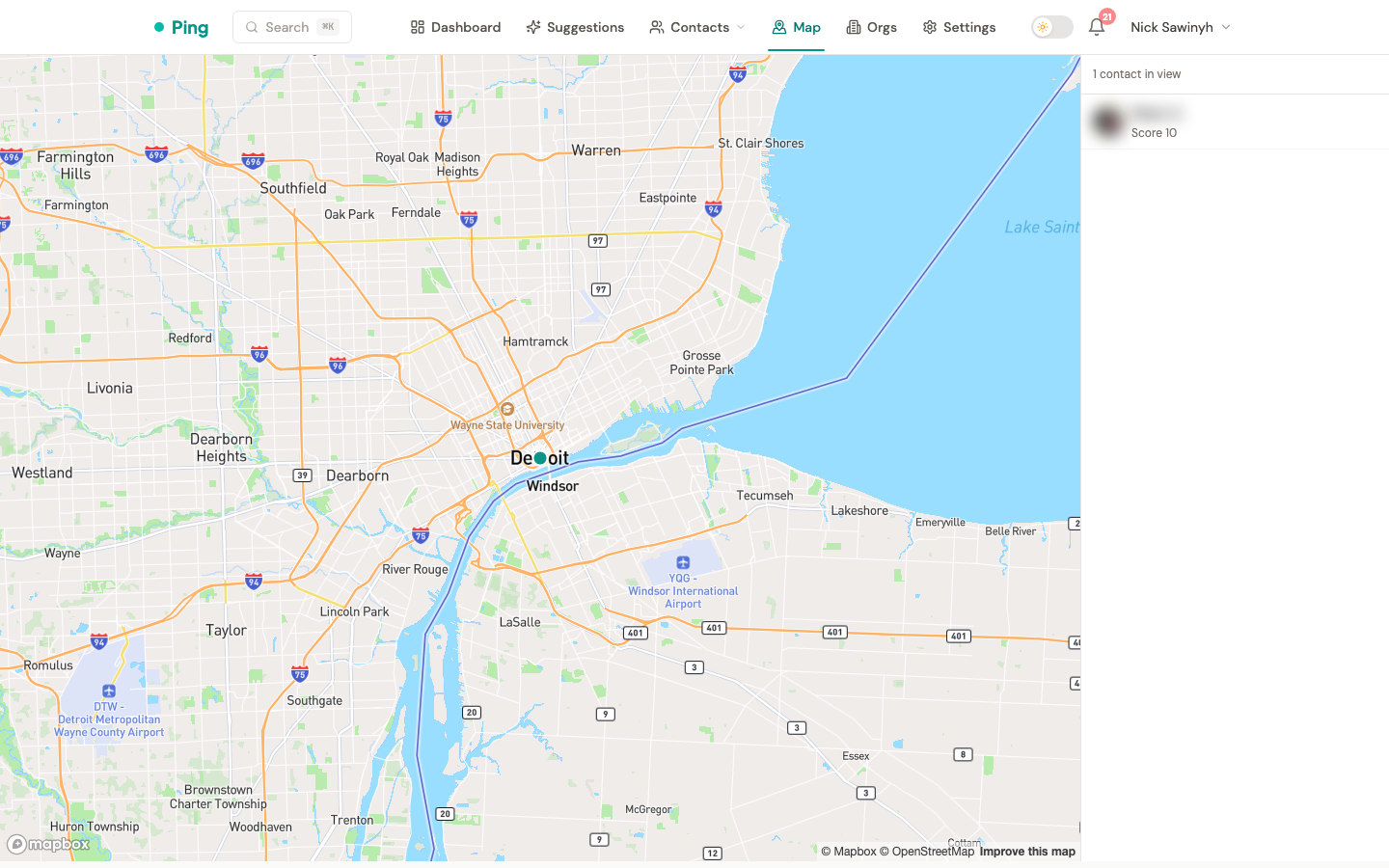

2. Contact page: when a contact has been geocoded, the location text under their profile is a link. It opens /map?focus=<contact_id>, centered on that contact at city-level zoom.

If a contact's location could not be geocoded (free-form text such as a URL, an emoji, or an unparseable entry), it shows as plain text on the contact page.

Viewport sidebar

The right-hand sidebar lists the contacts in view, highest relationship score first. The list refreshes when a pan or zoom gesture ends (Mapbox moveend).

Each row shows the contact's avatar, name, and score. Clicking a row opens the contact page.

When more than 500 contacts are in view, the sidebar shows "Showing 500 of N, zoom in for more". GET /api/v1/contacts/map returns at most 500 contacts per request.

Clustering

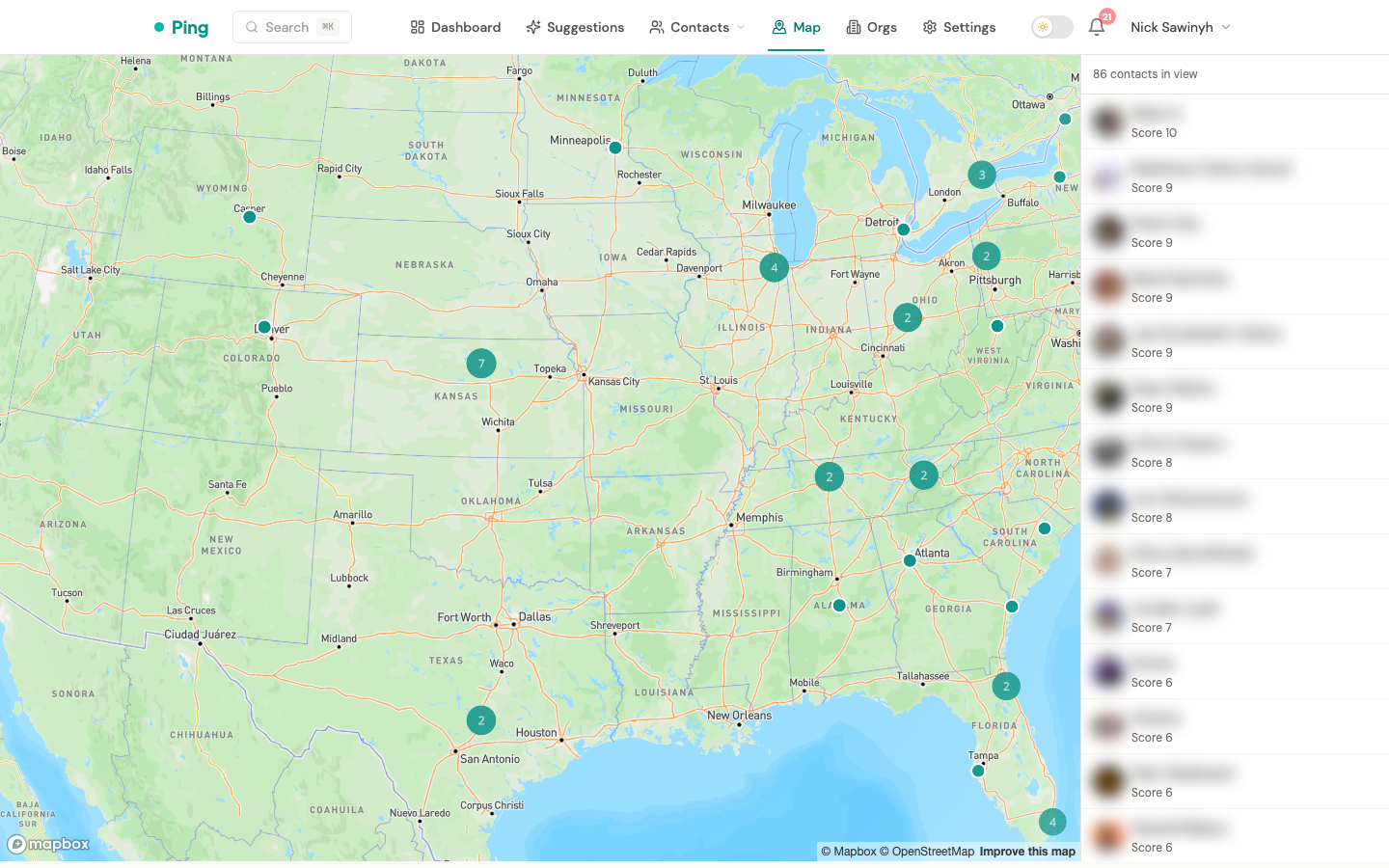

Zoomed-out views merge nearby pins into numbered cluster bubbles. Clicking a cluster zooms in and splits it. The cluster radius is 50 pixels. Clusters stop forming above zoom level 14, so individual pins appear from zoom 15.

Geocoding

A Celery task geocodes contacts in the background:

• On write: whenever a contact is created with a location, or its location changes (manual edit, LinkedIn, Google, or CSV import), a geocode_contact task is enqueued.
• One-time backfill: the backfill_all_contacts admin task enqueues every contact that has a location but no matching geocode.

The task is idempotent: it skips contacts whose stored geocoded_location already matches the current location. Clearing a contact's location clears its coordinates. Without MAPBOX_SECRET_TOKEN the worker skips geocoding and logs that the token is missing.

Failure handling

Mapbox response	Stored state	Behavior
200 with a match	latitude, longitude, geocoded_location, geocoded_at all set	Pin rendered on map
200 with zero results	geocoded_at set, lat/lng null	Contact hidden from map; no retry until location changes
4xx	Same as zero results	Dropped; logged at warning (provider) and info (task)
429 (rate limit)	Unchanged	Task retried with exponential backoff, up to 5 retries
5xx / timeout	Unchanged	Retried up to 3 times inside the service, then by Celery with exponential backoff

The task is rate limited to 500 per minute.

Configuration

Setup needs two Mapbox tokens:

• MAPBOX_SECRET_TOKEN: used by the backend Celery worker for geocoding. Any valid Mapbox token works, since Mapbox has no dedicated geocoding scope. For minor separation you can create a secret token by ticking any secret scope in the Mapbox dashboard.
• MAPBOX_PUBLIC_TOKEN: returned to the browser by GET /api/v1/map/config and used by react-map-gl to load tiles. Restrict this token to your production domain and localhost in the Mapbox token settings so nobody else can use your quota.

If MAPBOX_PUBLIC_TOKEN is missing, /map shows a "Map is not yet configured" message instead of crashing.

API surface

• GET /api/v1/map/config returns { data: { mapbox_public_token } }. Requires auth.
• GET /api/v1/contacts/map?bbox=minLng,minLat,maxLng,maxLat&limit=500 returns the authenticated user's contacts whose coordinates fall inside the bounding box. The response includes meta.total_in_bounds, which feeds the "Showing N of M" hint.
